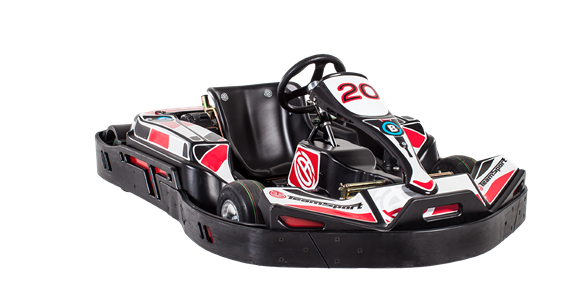

EcoVolt NG Electric Adult Kart:


BIZ Karts


BIZ Karts ha desarrollado un nuevo sistema electrónico para la EcoVolt. Las características del diseño modular incluye un motor sin escobillas poderoso y libre de mantenimiento, combinado con un regulador fiable y una batería de iones de litio (LFP) compacta y ligera. Los componentes electrónicos han sido cuidadosamente seleccionados para representar a la mejor tecnología disponible y comprobada a través de ciclos de pruebas rigurosas para garantizar robustez. El resultado es una solución "plug and play" que se entiende y se mantiene fácilmente. Todo esta atornillado al mismo chasis de calidad, soldado a mano, simétrico, de doble tubo, de alta resistencia. El cambio al eléctrico nunca ha sido más sencillo.


BIZ Karts




Para más información, visita: http://www.bizkarts.com





Características principales (En Inglés)

  • A British engineered permanent magnet AC Axial Flux motor. The motor is manufactured in the UK to an automotive standard and proved in automotive hybrid vehicle applications. It has a greater than 90% efficiency, and is a brushless and clean, no maintenance motor.
  • British engineered motor controllers, proven in automotive applications, including Renault and Nissan electric and hybrid vehicles.
  • A BIZ designed modular system integration for ease of use and plug and play functionality: Battery Module, Power Module, Motor Module.
  • Solid State Relay technology for increased reliability of switching components.
  • Innovative Intelligent Battery Management System with Active Balancing & Temperature Monitoring, extending run time, ensuring cell life.
  • Simple on Kart custom engraved LED’s for diagnostics + PC Diagnostic Software.
  • Electronic Anti Double Pedal control.
  • Optional but recommended remote controlled 3 Speed + Emergency STOP system including the ability to set a Pit Lane Speed limit (another optional extra).
  • Optional “Push to Pass” integrated steering wheel button (coming soon) will allowed increased speed or torque for limited time per lap similar to KERS/DRS F1 concept.


BIZ Karts



Especificaciones detalladas (En Inglés)

Motor, Electrónica y Batería

  • 14.9kW, 70Nm Permanent Magnet Axial Flux Brushless Motor
  • 48V, 275A Motor Controller (300A, 10sec)
  • 51.2V, 3kWh Lithium-Ion (LFP) Battery
  • Active Balancing Battery Management System (BMS)
  • Tri-Colour Controller Diagnostics LED
  • Tri-Colour Battery Diagnostics LED
  • Electronic Anti-Double Pedal System
  • Forward, Neutral and Reverse Operation
  • Emergency stop switch
  • Automotive Waterproof Wiring Harness

Chasis y ruedas

  • High strength twin tube welded chassis, which is available in a choice of colours
  • Duro tyres

Componentes del eje trasero

  • High tensile 30mm solid rear axle
  • BIZ self adjusting hydraulic brake system
  • Plain steel 8mm brake disc
  • Quick change axle bearing hangers
  • Super heavy duty mono alloy wheels

Volante, Silla y Pedales

  • Sliding seat unit
  • Heavy duty steering wheel
  • 8mm Ackermann steering column and taper roller bearing stub axles
  • Steering column safety ring
  • Heavy duty moulded plastic seat
  • Flip over pedal system, 3 position

Carrocería y Parachoques

  • 20mm heavy duty plastic front and rear bumper
  • 12mm heavy duty plastic side protection
  • Quick release axle safety cover
  • Shock absorbing side protection system
  • Fully moulded side pod/battery covers
  • Rubber mounted battery tray
  • Fully moulded inboard mounted front nosecone
  • Nassau panel mounted dashboard


BIZ Karts



Opciones

Opciones electrónicas

  • Remote shutdown and speed control
  • Pit lane and sector speed limit control
  • Push to Pass System (P2P)
